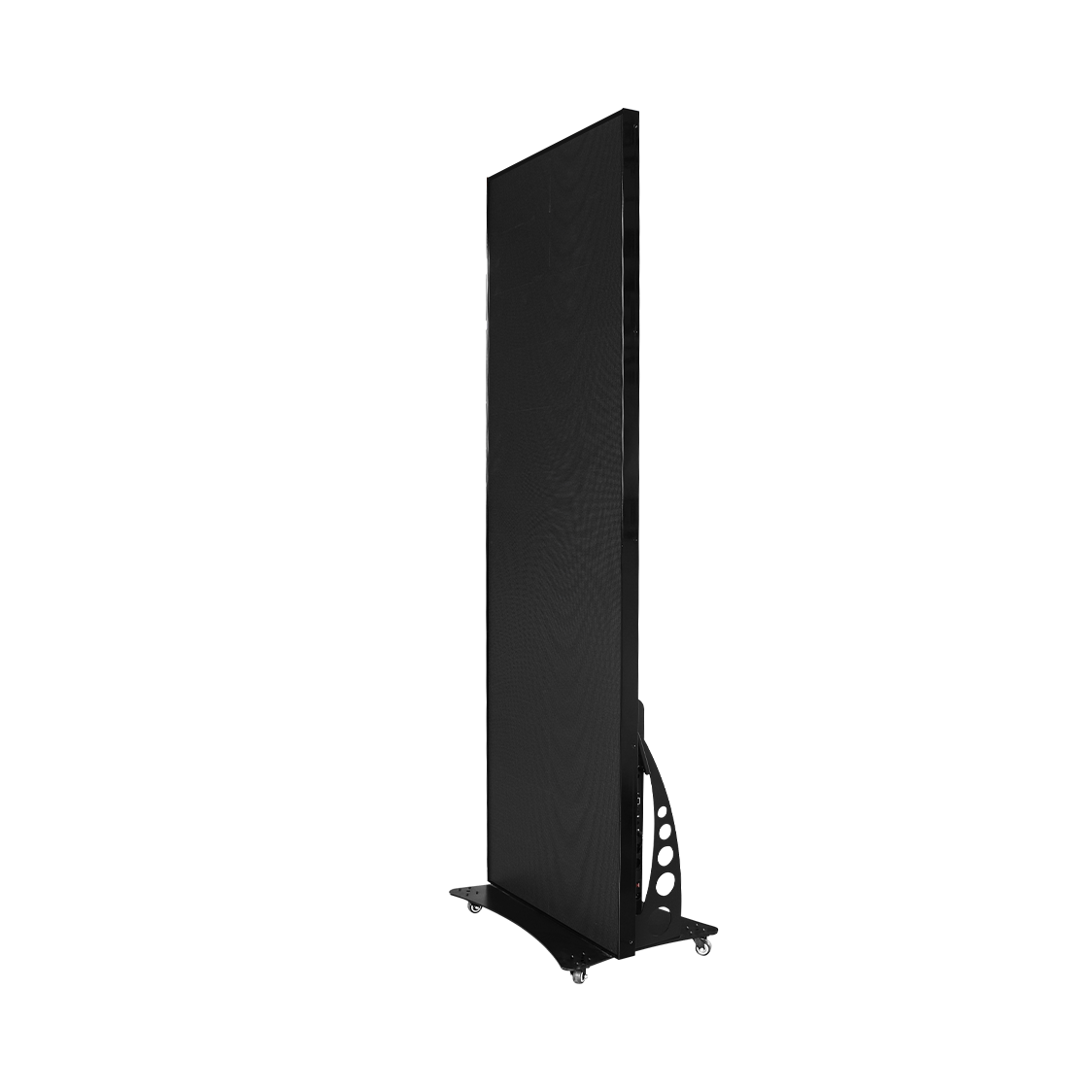

LED Poster Series
Portable with wheels: easy to move
Multiple inputs: HDMI / USB / Ethernet/ Wifi.
Acrylic board protective design:protect the poster from water and surprise impact.
Easy content updating: wireless control via wifi
Connectivity to assemble into a big screen
High-definition: LED poster displays feature high resolution and pixel density, delivering clear and detailed images and text content.

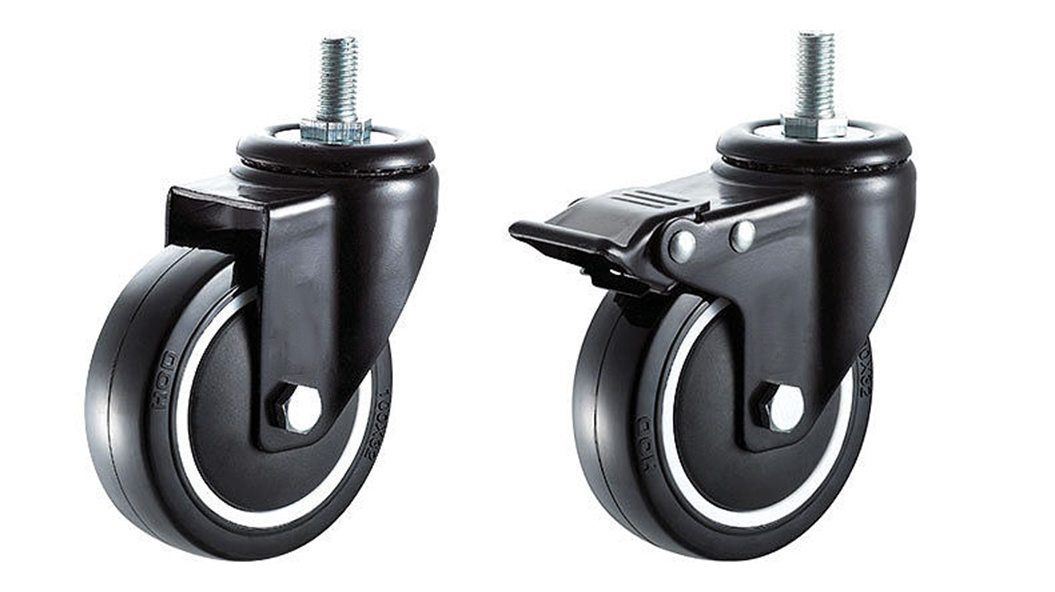

Portable With Wheels
Portable with wheels:easyto move

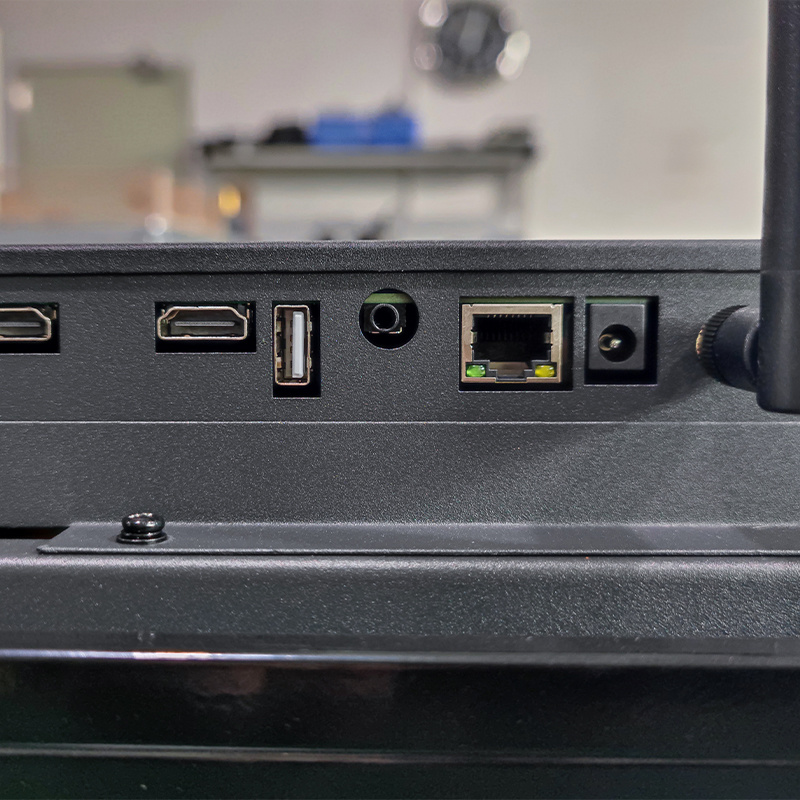

Multiple Inputs
HDMI / USB / Ethernet/ Wifi
Acrylic Board Protective Design
protect the poster from water and surprise impact.
Easy Content Updating
wireless control via wifi

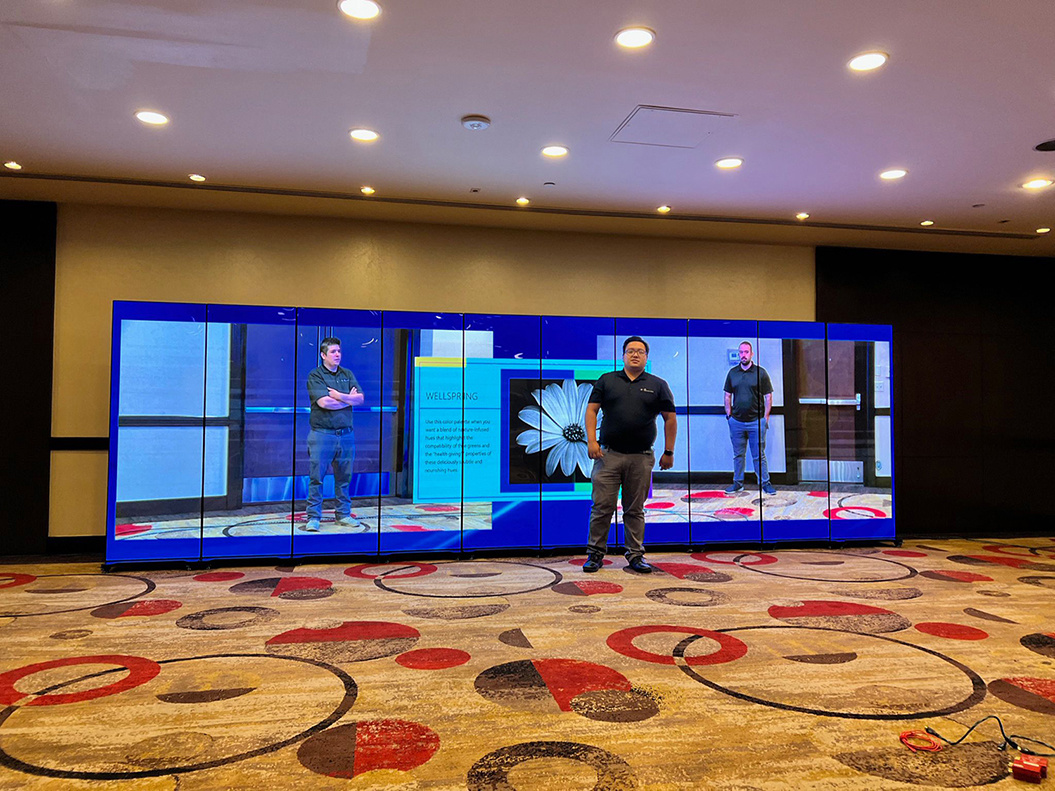

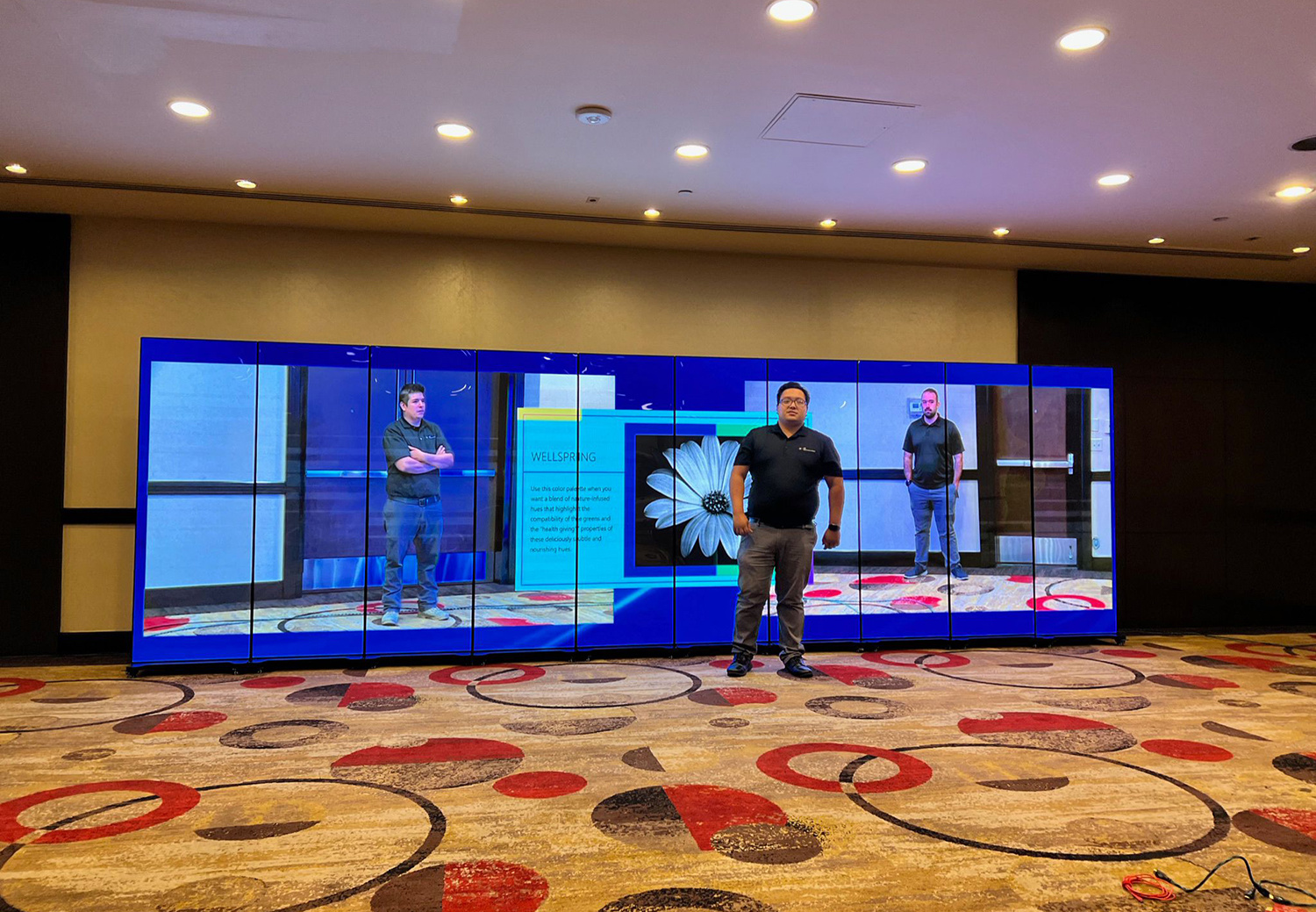

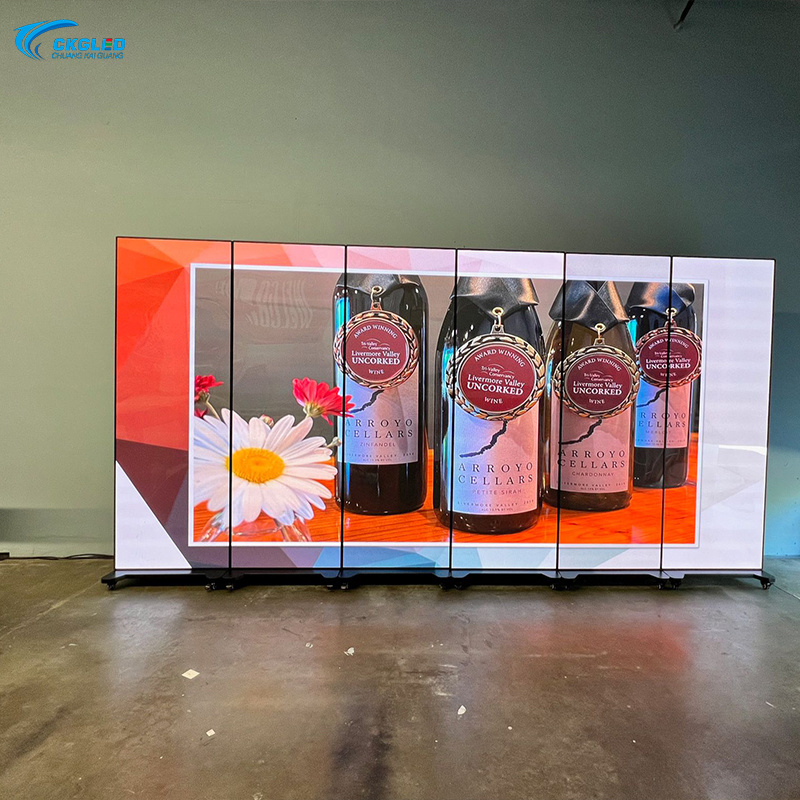

Connectivity To Assemble Into A Big Screen
Connectivity to assemble into a big screen
High-Definition
LED poster displays feature high resolution and pixel density, delivering clear and detailed images and text content.
Product parameters
| PARAIETERS | SPECIFICATIONS | |||||||
| Product Series | POSTER | |||||||
| Pixel Pitch（mm） | 1.25 | 1.53 | 1.667 | 1.86 | 2 | 2.5 | ||
| LED Lamp Type | SMD1010 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD2020 | ||
| Pixel Density | 640,000dots/㎡ | 422,500dots/㎡ | 360,000dots/㎡ | 288,906dots/㎡ | 250,000dots/㎡ | 160,000dots/㎡ | ||
| Scan Frequncy | 1/64 | 1/52 | 1/48 | 1/43 | 1/40 | 1/32 | ||
| Module Size | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | ||
| Cabinet Size | 640*1920mm | 640*1920mm | 640*1920mm | 640*1920mm | 640*1920mm | 640*1920mm | ||
| Poster resolution | 786,432pixels | 519,168pixels | 442,368pixels | 355,007pixels | 307,200pixels | 196,608pixels | ||
| Cabinet Material | Aluminum | |||||||
| Cabinet weight | 39kg | 39kg | 39kg | 39kg | 39kg | 39kg | ||
| Viewing Angle | H:140°/ V:160° | H:140°/ V:160° | H:140°/ V:160° | H:140°/ V:160° | H:140°/ V:160° | H:140°/ V:160° | ||
| Grey Scale | 16Bit | 16Bit | 16Bit | 16Bit | 16Bit | 16Bit | ||
| Frame Rate | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz | ||
| Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ||
| Brightness | 800nits | 800nits | 800nits | 1000nits | 1000nits | 1000nits | ||
| Input Voltage | AC 100~240V | AC 100~240V | AC 100~240V | AC 100~240V | AC 100~240V | AC 100~240V | ||
| Ave. Power Consumption（W/set） | 197 | 197 | 197 | 197 | 197 | 197 | ||
| Max. Power Consumption（W/set） | 688 | 688 | 688 | 688 | 688 | 688 | ||
| IP Grade | IP54 | IP54 | IP54 | IP54 | IP54 | IP54 | ||
| Input | HDMI /ETHERNET / USB / WIFI | |||||||
| Maintenance | Front Service | |||||||
| Working humidity | 10～85% RH | |||||||
| Working Temperature | -30 - 60 ℃ | |||||||
| Life span（H） | 100000 | |||||||
| Certificate | CCC / RoHS / CE / EMC / FCC | |||||||
