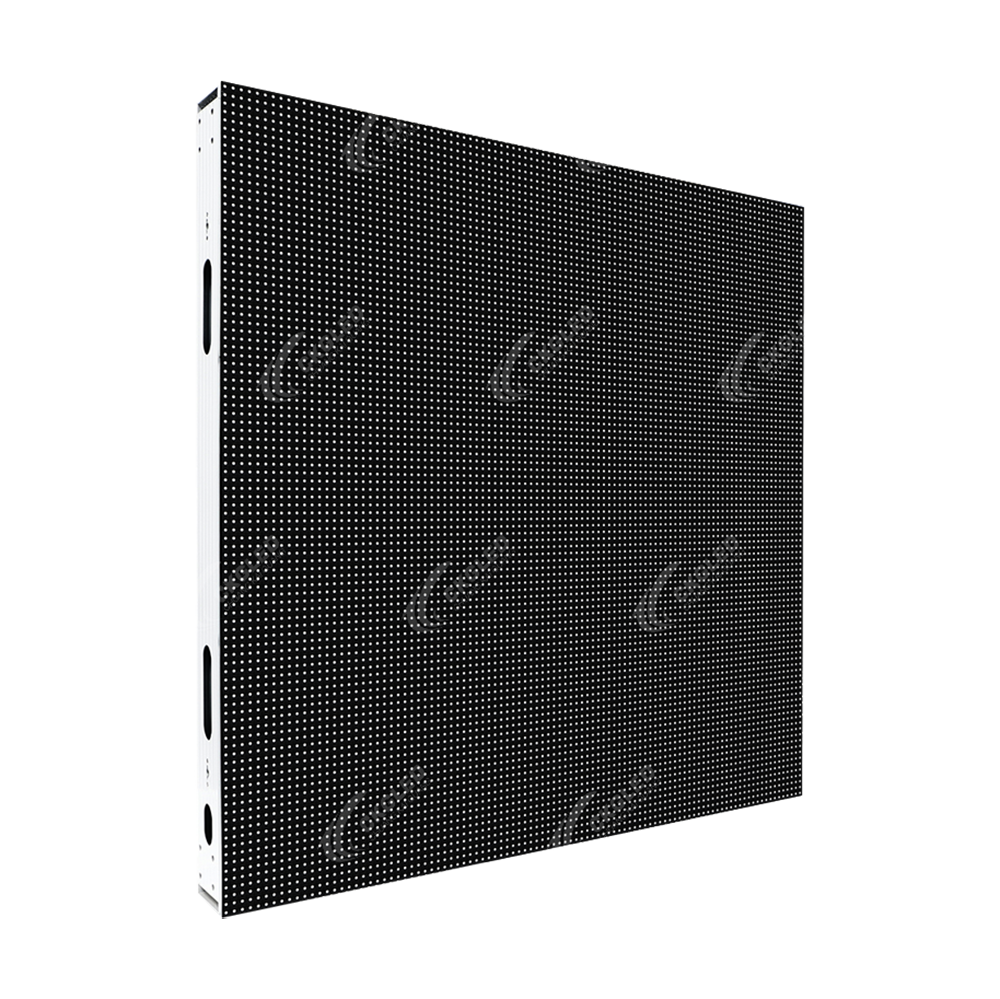

F5 Series
Both front service and rear service design.
Aluminum profile material,anti-rust and light weight 24kg/panel.
Innovative Energy-saving design: saving energy upto 75%.
Structure-free installation: can be mounted to concrete wall directly without any metal support structure, saving cost.
Wide range working environment: -40℃ ~ 80℃.
IP68 protection grade, durable nature enables the screen to work in all outdoor weather conditions.
![](https://omo-oss-image.thefastimg.com/portal-saas/pg2024022214060116706/cms/image/7af39609-2ac9-4355-bf25-46bec4e511b0.png)
![](https://omo-oss-image.thefastimg.com/portal-saas/pg2024022214060116706/cms/image/ac8e3d29-af15-4b0c-b195-e1f1e13cec22.png)
![](https://omo-oss-image.thefastimg.com/portal-saas/pg2024022214060116706/cms/image/1a3935c3-a9d1-47da-9278-c694cbfbc940.png)
![](https://omo-oss-image.thefastimg.com/portal-saas/pg2024022214060116706/cms/image/4a81021f-26c8-4a80-b80d-6d81bf41b116.png)
![](https://omo-oss-image.thefastimg.com/portal-saas/pg2024022214060116706/cms/image/245d936d-47c0-456c-adfc-f0cf8b15392d.png)
![](https://omo-oss-image.thefastimg.com/portal-saas/pg2024022214060116706/cms/image/c6439372-68b3-4da1-a325-4d9f38a57d1d.png)
![](https://omo-oss-image.thefastimg.com/portal-saas/pg2024022214060116706/cms/image/790c40f0-cf46-4fb7-93a3-2fbfff155946.jpg)
![](https://omo-oss-image.thefastimg.com/portal-saas/pg2024022214060116706/cms/image/ce4bbdbd-2056-4090-ac3a-a74663961746.jpg)

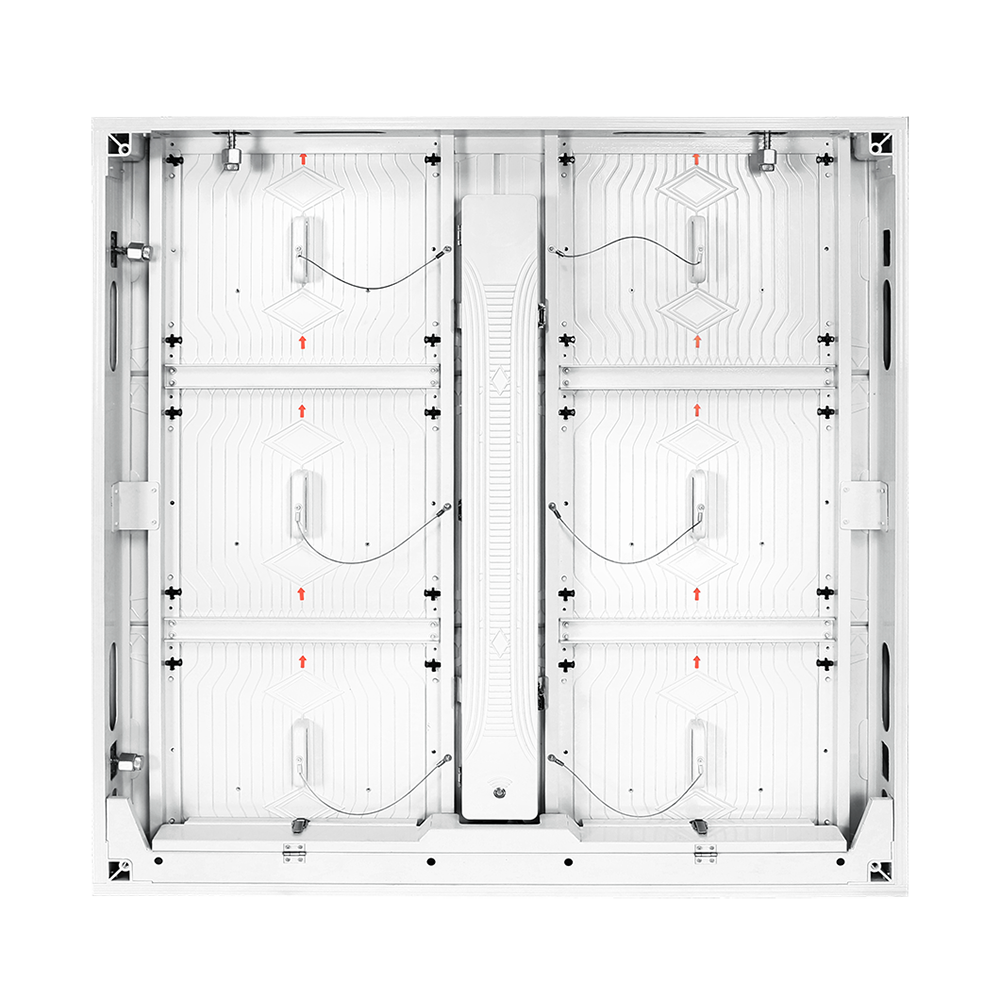

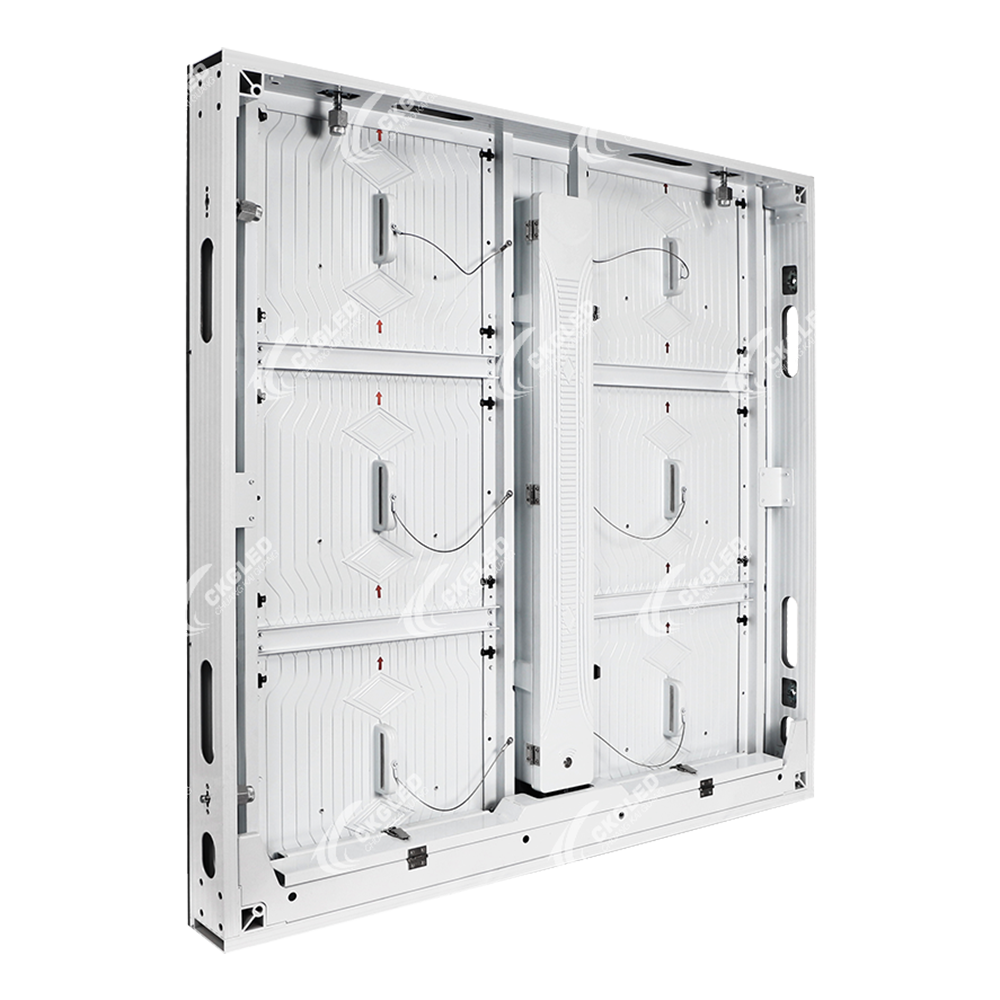

Easy Maintenance
Both front service and rear service design

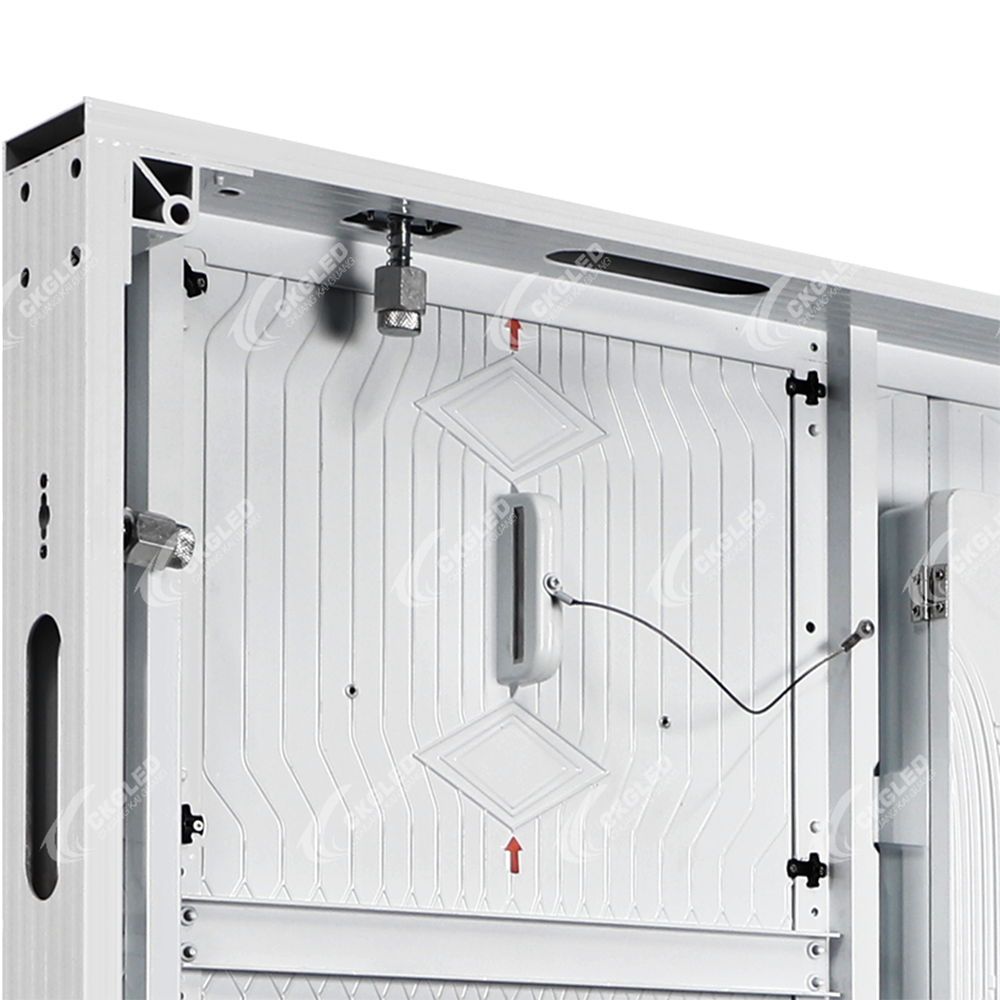

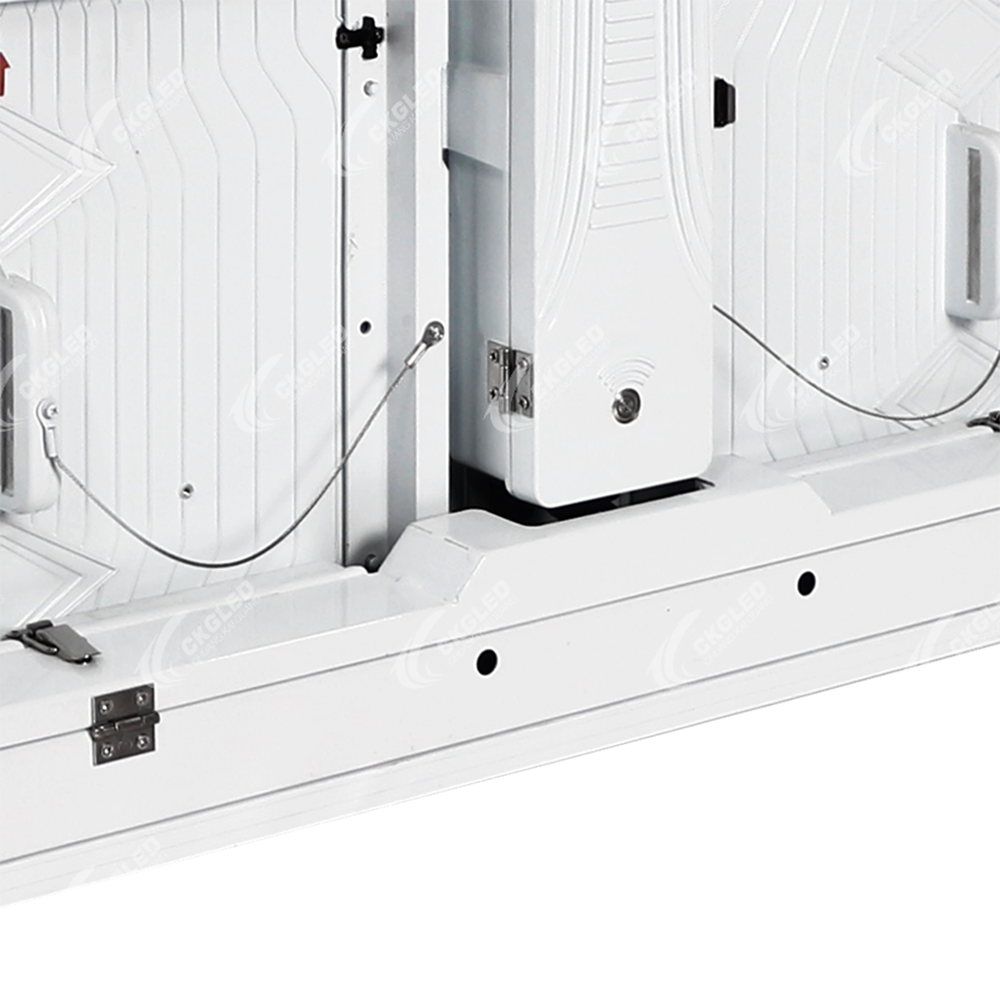

Aluminum Profile Material
anti-rust and light weight 24kg/panel.
Innovative Energy-Saving Design
saving energy upto 75%
Structure-Free Installation
can be mounted to concrete wall directly without any meta support structure, saving cost.
Wide Range Working Environment: -40℃ ~ 80℃
Wide range working environment: -40℃ ~ 80℃
IP68 Protection Grade
durable nature enables the screen to work in all outdoor weather conditions.
Product Parameters
PARAIETERS | SPECIFICATIONS | ||||||
Product Series | F5 | ||||||
Pixel Pitch(mm) | 4.4 | 5.7 | 6.67 | 8 | 10 | ||
LED Lamp Type | SMD2727 | SMD2727 | SMD2727 | SMD2727 | SMD3535 | ||
Pixel Density | 50,625dots/㎡ | 30,625dots/㎡ | 22,500dots/㎡ | 15,625dots/㎡ | 10,000dots/㎡ | ||
Scan Frequncy | 1/9 | 1/7 | 1/6 | 1/5 | 1/2 | ||
Module Size | 480*320mm | 480*320mm | 480*320mm | 480*320mm | 480*320mm | ||
Cabinet Size | 960*960*90mm | 960*960*90mm | 960*960*90mm | 960*960*90mm | 960*960*90mm | ||
Cabinet resolution | 46,656pixels | 28,224pixels | 20,736pixels | 14,400pixels | 9,216pixels | ||
Cabinet Material | Aluminum Profile | ||||||
Cabinet weight | 24kg | 24kg | 24kg | 24kg | 24kg | ||
Viewing Angle | H:160°/ V:160° | H:160°/ V:160° | H:160°/ V:160° | H:160°/ V:160° | H:160°/ V:160° | ||
Grey Scale | 16Bit | 16Bit | 16Bit | 16Bit | 16Bit | ||
Frame Rate | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz | ||
Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥1920Hz | ≥1920Hz | ||
Brightness | ≥6000nits | ≥6000nits | ≥6000nits | ≥6000nits | ≥6000nits | ||
Input Voltage | AC 100~240V | AC 100~240V | AC 100~240V | AC 100~240V | AC 100~240V | ||
Ave. Power Consumption(W/㎡) | 86 | 86 | 86 | 86 | 86 | ||
Max. Power Consumption(W/㎡) | 258 | 258 | 258 | 258 | 258 | ||
IP Grade | IP68 | IP68 | IP68 | IP68 | IP68 | ||
Control method | Sync / Async / 4G / WIFI | ||||||
Maintenance | Front service | ||||||
Working humidity | 10~95% RH | ||||||
Working Temperature | -30 - 60 ℃ | ||||||
Life span(H) | 100000 | ||||||
Certificate | CCC / RoHS / CE / EMC / FCC |
