CM Series

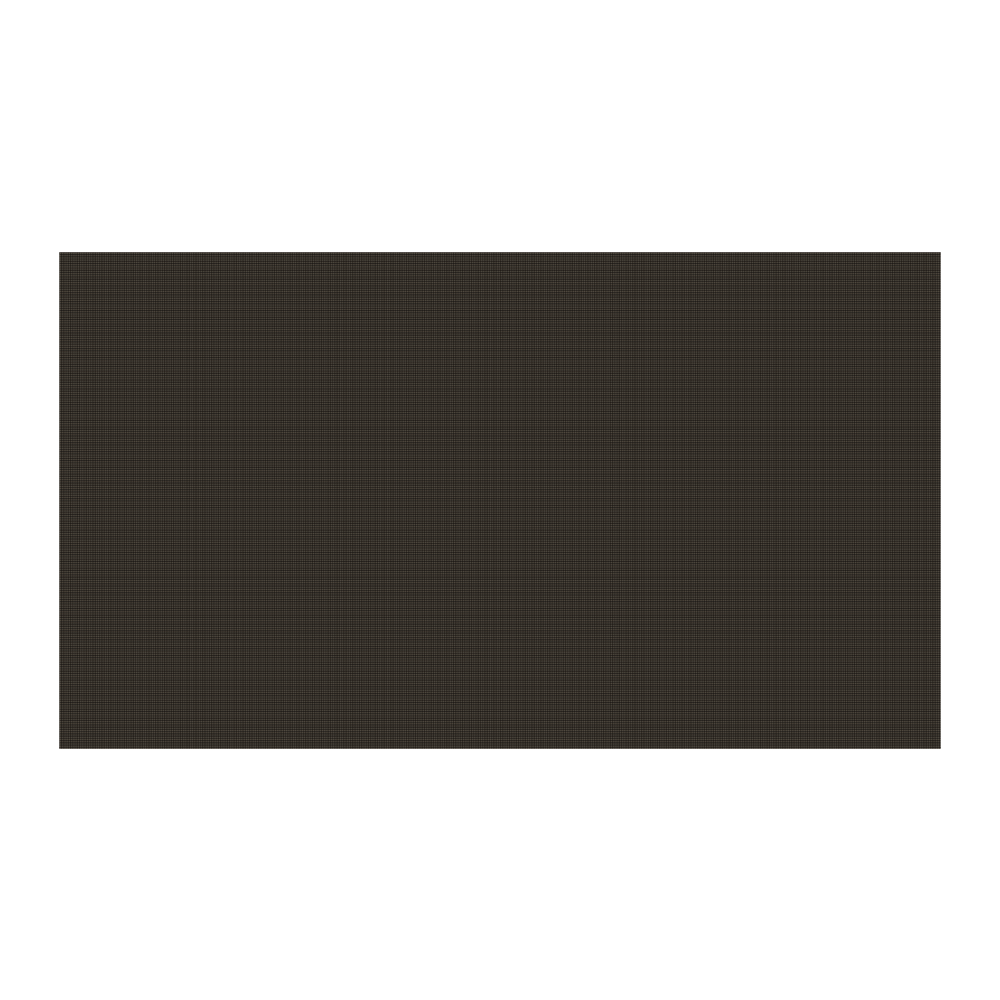

16:9 ratio panel: 600x337.5mm.
Full front service: quick modular exchange from front side.
Innovative wireless controller box design: integrated control box design for easy&quick maintenance.
Noiseless design, excellent heat dissipation
Module calibration: calibration data written into the module procedure for uniformity of brightness and color, achieving clear and natural images.
7680Hz high refresh rate: Smooth and vivid videos without ripple and blank, clear images restored accurately, bringing to the audience greatest visual enjoy.
Low brightness with high grey-scale: High grey-scale available even below 100nits brightness, the layering and vividness of the video superior to traditional screens.

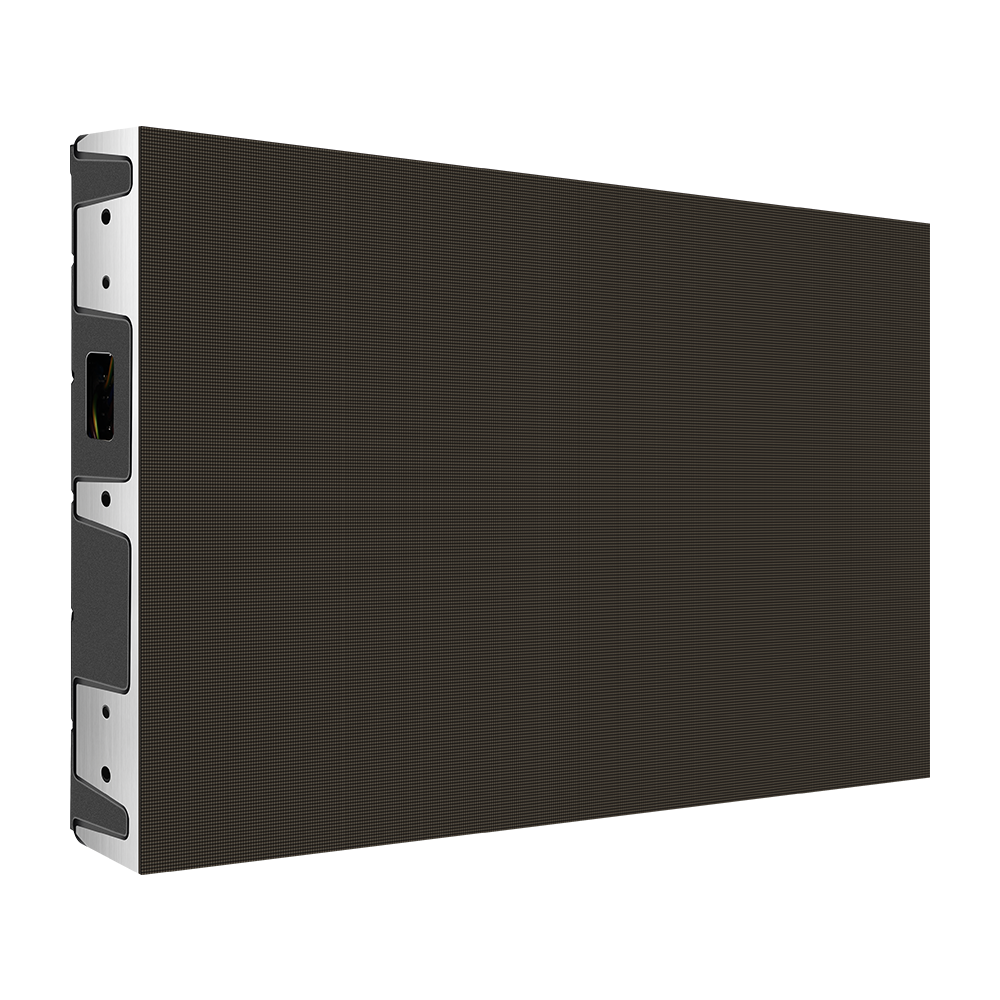

16:9 Ratio Cabinet Design
600x337.5mm

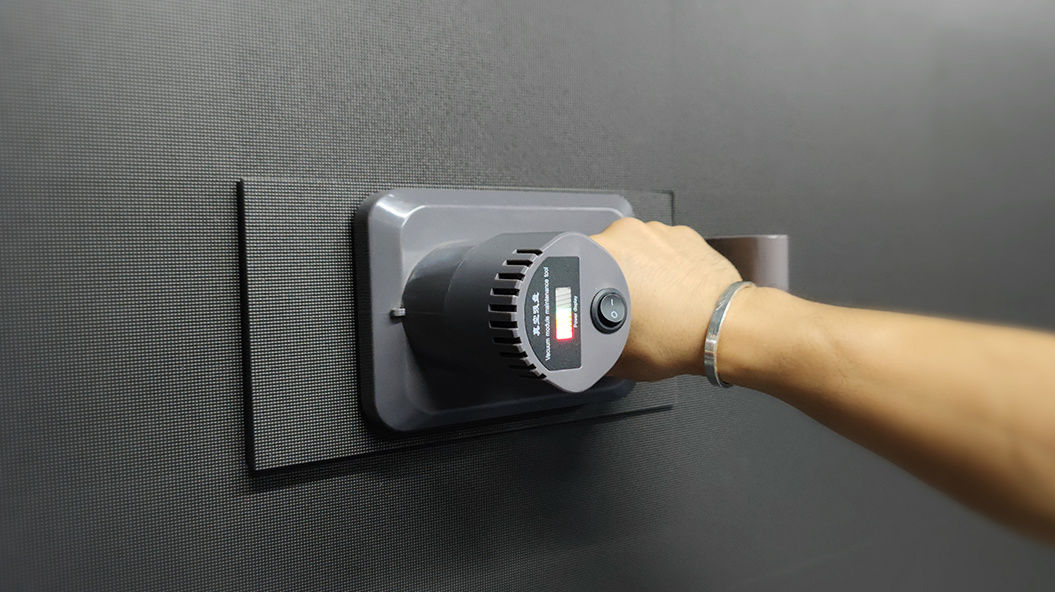

Full Front Service
quick modular exchange from front side
Innovative Wireless Controller Box Design
integrated control box design for easy&quick maintenance.
Noiseless design
excellent heat dissipation
Module Calibration
calibration data written into the module procedure for uniformity of brightness and color, achieving clear and natural images
7680Hz High Refresh Rate
Smooth and vivid videos without ripple and blank, clear images restored accurately, bringing to the audience greatest visual enjoy.
Low Brightness With High Grey-Scale
High grey-scale available even below 100nits brightness, the layering and vividness of the video superior to traditional screens.
Product parameters
| PARAIETERS | SPECIFICATIONS | |||
| Product Series | CM | |||
| Pixel Pitch (mm) | 0.937 | 1.25 | 1.56 | 1.875 |
| LED Lamp Type | Mini 4-in-1 | SMD1010 | SMD1212 | SMD1515 |
| Pixel Density ((dots) | 1,136,356 | 640,000 | 410,913 | 284,444 |
| Scan Frequency | 1/60 Scan | 1/45 Scan | 1/48 Scan | 1/45 Scan |
| Module Size | 300*168.75mm | 300*168.75mm | 300*168.75mm | 300*168.75mm |
| Cabinet Size | 600*337.5mm | 600*337.5mm | 600*337.5mm | 600*337.5mm |
| Ratio | 16:09 | |||
| Cabinet Material | Die-casting aluinum | |||
| Cabinet weight | 5.5kg | 5.5kg | 5.5kg | 5.5kg |
| Viewing Angle | H:160° V:160° | H:160° V:160° | H:160° V:160° | H:160° V:160° |
| Grey Scale (bits) | 16 Bit | 16Bit | 16Bit | 16Bit |
| Frame Rate (HZ) | 60 | 60 | 60 | 60 |
| Refresh Rate (HZ) | ≥7680 | ≥7680 | ≥7680 | ≥7680 |
| Brightness (cd) | 600 | 800 | 800 | 1000 |
| Input Voltage(v) | AC 100~240V | AC 100~240V | AC 100~240V | AC 100~240V |
| Average Power Consumption (W/m2) | 160 | 160 | 160 | 160 |
| Max Power Consumption (W/m2) | 560 | 560 | 560 | 560 |
| Waterproof Grade | IP30 | IP30 | IP30 | IP30 |
| Control method | Synchronization / Ashychronous control / Wifi control | |||
| Maintenance | Full Front Service | |||
| Working humidity | 10~85%RH | |||
| Working Temperature | -30-50 °C | |||
| Life span | 100,000 Hours | |||
| Certificate | CCC / RoHS / CE / EMC / FCC | |||

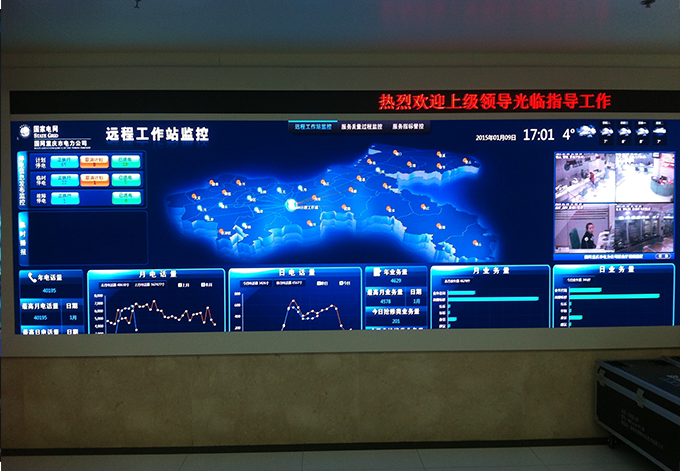

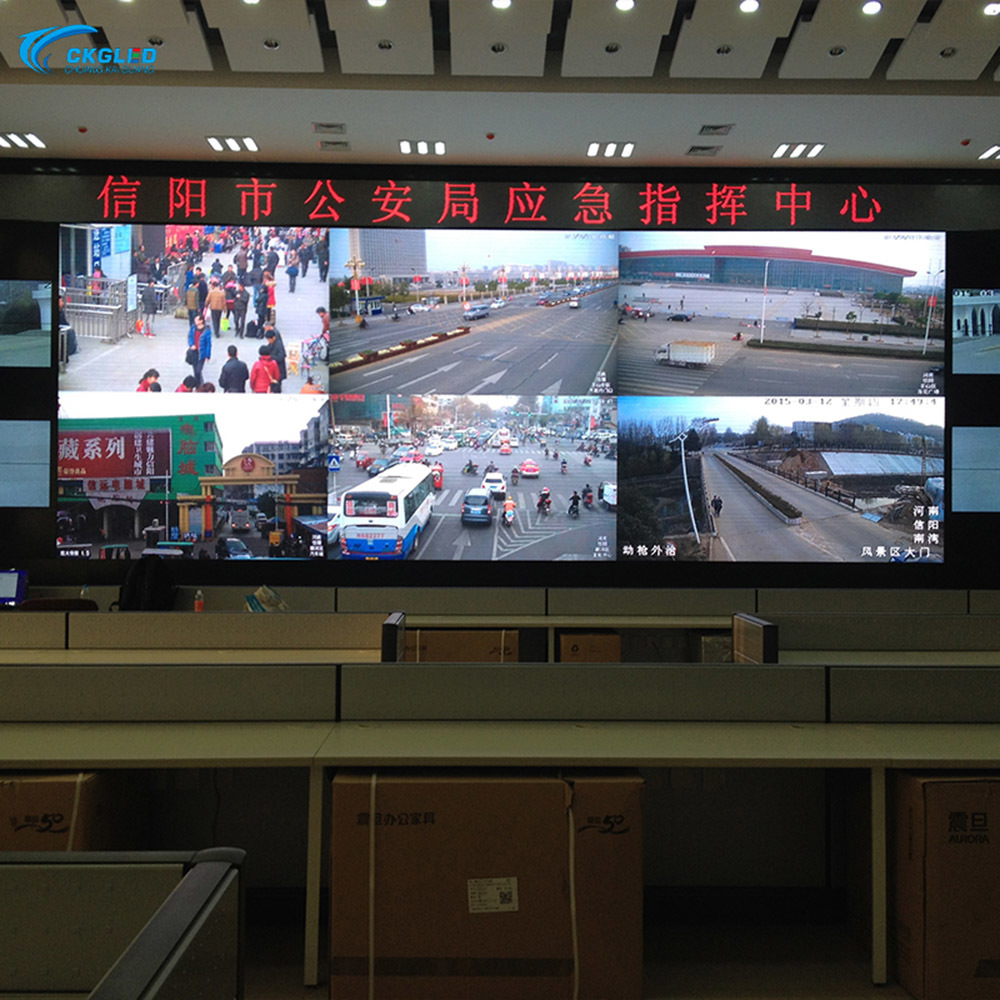

Related cases
