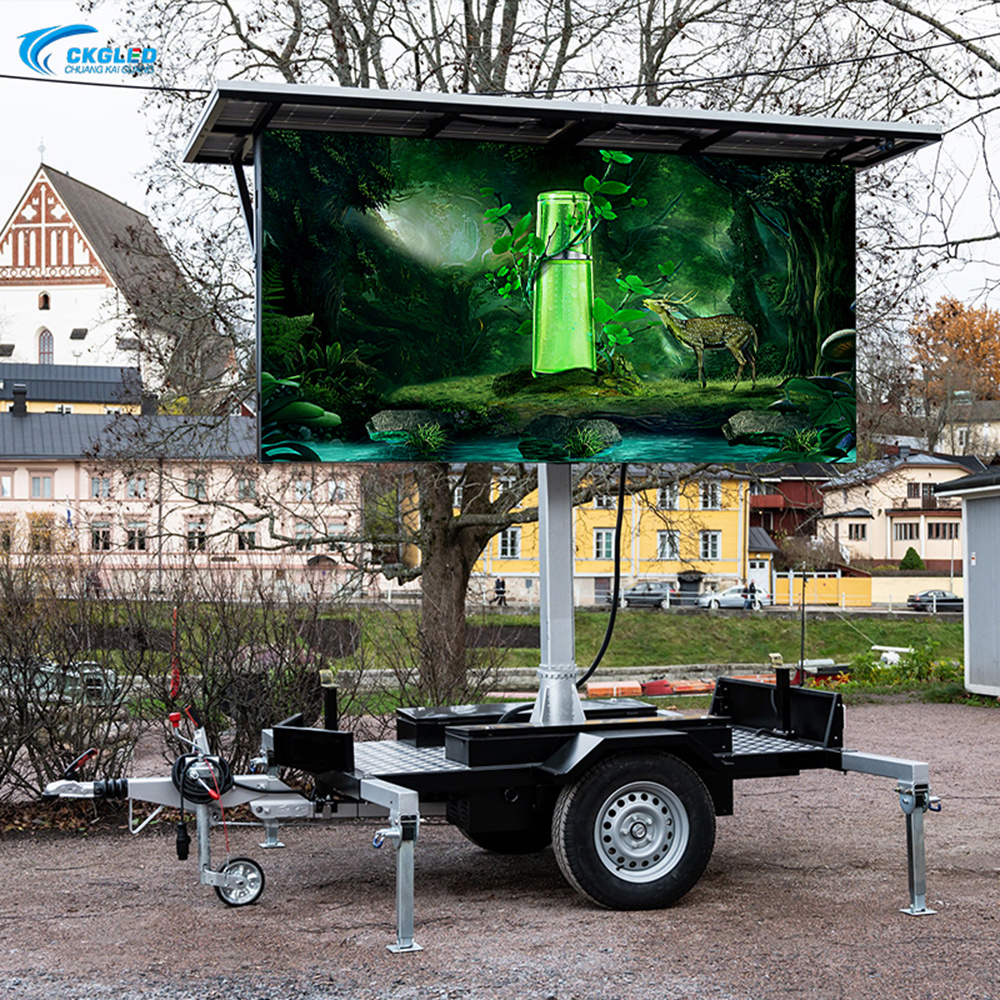

MT4-S
Hydraulic lifting: range upto 1000mm.
330°manual rotation/ 120km/highspeed design.
Working on DC power with batteries and AC power at the same time.
Integrated power and control design.
IP65:waterproof for all weather conditions.

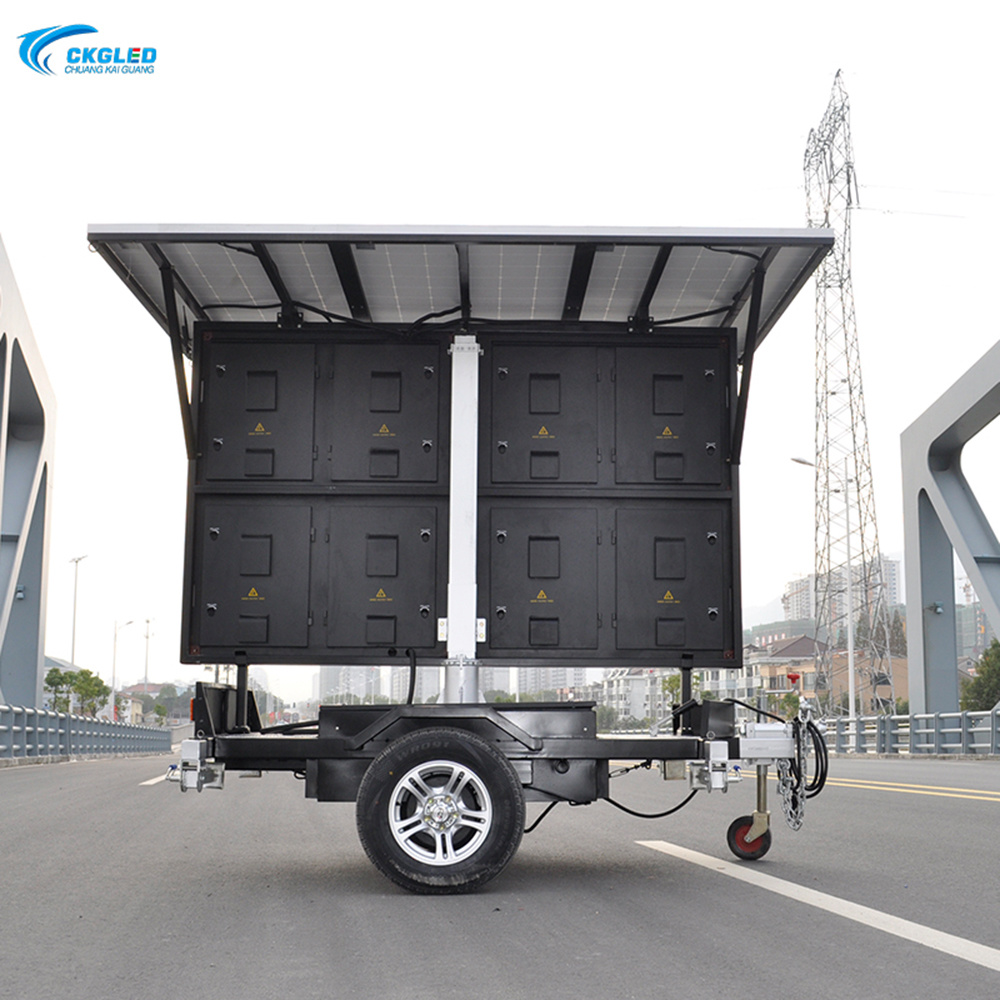

Can be powered by solar panels(optional)
Hydraulic Lifting
Range Upto 1000mm.

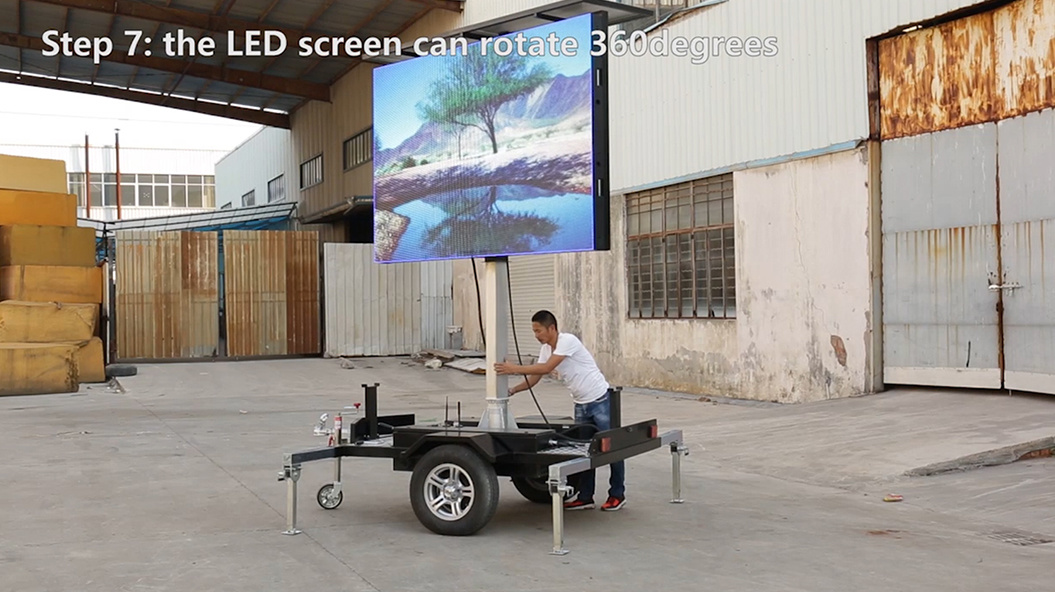

330°Manual Rotation
330°manual rotation/ 120km/h Highspeed design
Working On DC Power With Batteries And AC Power At The Same Time
Working on DC power with batteries and AC power at the same time.

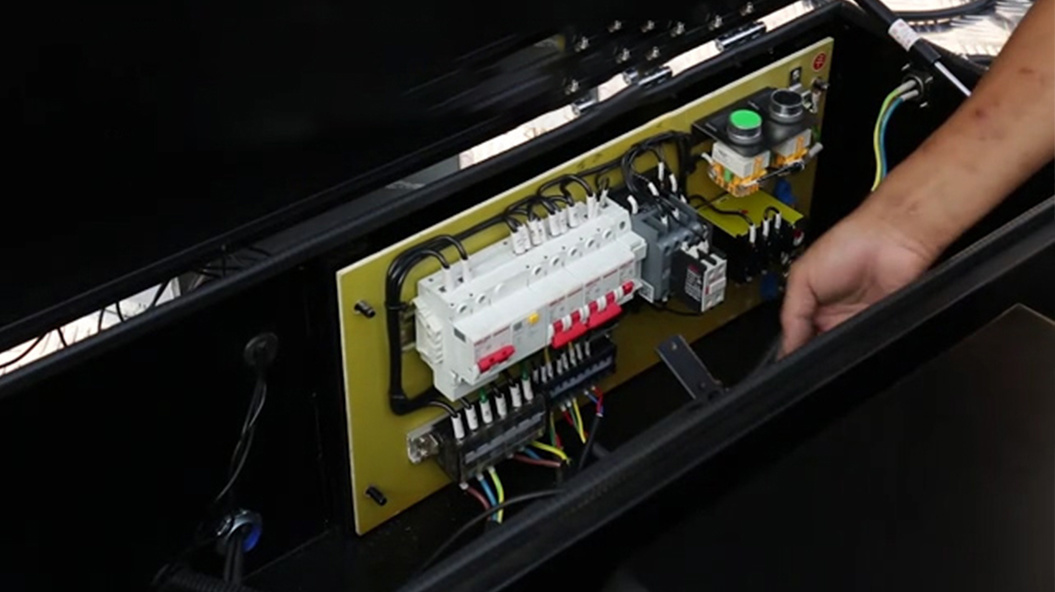

Integrated Power And Control Design
Integrated power and control design
IP65:Waterproof For All Weather Conditions
IP65:waterproof for all weather conditions
Can Be Powered By Solar Panels(Optional)
Can be powered by solar panels(optional)
Product Parameters
|
Parameter |
Specifications |
Specifications |
Specifications |
|
Trailer model |
MT3 |
MT4 |
MT4-S |
|
Pixel Pitch |
10mm |
4mm |
4mm |
|
Pixel Density |
10000dots/㎡ |
62500dots/㎡ |
62500dots/㎡ |
|
LED Type |
SMD3535 |
SMD1921 |
SMD1921 |
|
Viewing Angle |
H160°/ V140° |
H160°/ V140° |
H160°/ V140° |
|
Brightness |
≥7500cd/㎡ |
≥6000cd/㎡ |
≥6000cd/㎡ |
|
Drive Method |
1/2 scan |
1/10 scan |
1/10 scan |
|
Refresh Rate |
≥1920Hz |
≥1920Hz~3840Hz |
≥1920Hz~3840Hz |
|
Module Size |
320×160mm |
320×160mm |
320×160mm |
|
Screen size |
1920×1280mm |
2560*1536mm |
2560*1280mm |
|
Trailer dimension |
2364*1800*2162mm |
2700*1800*2600mm |
2740*1800*2300mm |
|
Display Resolution(dots) |
192*128pixles |
640*384pixles |
640*384pixles |
|
Trailer display weight |
650kg |
700kg |
950kg |
|
Voltage(V) |
110~220V, ±10% |
110~220V, ±10% |
DC24V /AC110~220V |
|
Avg.Power Consumption( W/㎡) |
260w/㎡ |
260w/㎡ |
260w/㎡ |
|
Max.Power Consumption( W/㎡) |
750w/㎡ |
750w/㎡ |
750w/㎡ |
|
Service Access |
Rear |
Rear |
Rear |
|
IP Grade |
IP65 |
IP65 |
IP65 |
|
Operating Temp/Humidity |
-30℃～60℃, 10～95%RH |
-30℃～60℃, 10～95%RH |
-30℃～60℃, 10～95%RH |
|
Lifespan |
≥100,000H |
≥100,000H |
≥100,000H |
|
Compliant Standard |
CCC/CE/RoHS/FCC |
CE/RoHS/TUV/FCC |
CE/RoHS/TUV/FCC |
